Metal Laser Engraver Printer Video
The MarkTech 100i Portable Laser Engraver processes metal materials like Steel, Aluminum, Brass and some Plastics. Now you can Laser Mark and Laser Label via directly marking onto products and parts. Easily configure for printing Serial Numbers, Date and Time Code Marking, Stencil Text characters. This Laser Marking Machine can also Print Graphics in raster or vector formats and will produce machine-readable 1D Barcodes, QR Codes & the industrial 2D Datamatrix Code. The MarkTech 100i Handheld Portable Laser Engraver is mobile, with Handheld Laser Engraver head and easy to operate and program to produce Permanent Marking and Coding. Powerful 100W Fiber Laser Engraver equipped in this Handheld Metal Laser Engraver and weighs approximately 39 pounds, for practical portable laser engraving.
Laser Engraving Machine for Metal Applications with MarkTech 100i

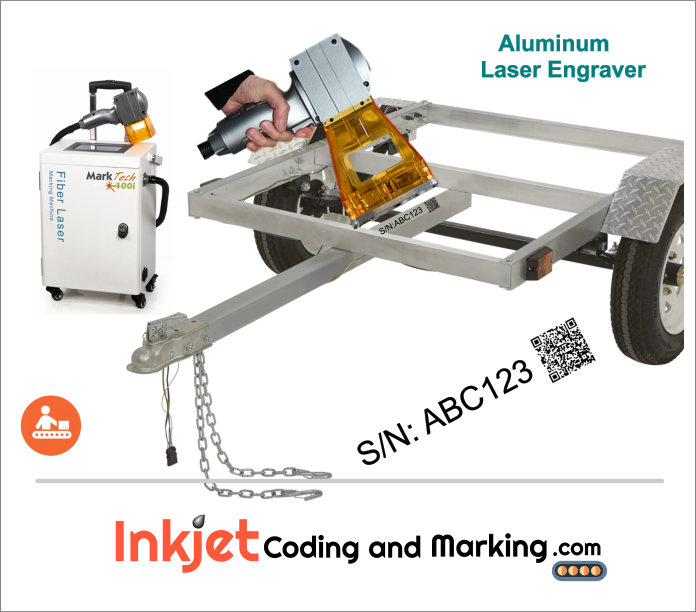

Auminum Laser Engraver
Handheld Laser Marking Stainless Steel
Laser Engraving Brass
Laser Engraving Copper
LASER ENGRAVING MACHINE SOFTWARE:
No computer needed, the Laser Engraver Software, powered by Linux, is built-into the MarkTech 100i Portable Handheld Laser Engraver. Using the onboard Touchscreen allows the user to pre-configure customized Laser Marking and Laser Engraving jobs. Industrial Laser Marking could not be easier.
HANDHELD LASER ENGRAVER OPERATION:
Put on your Laser Safety Glasses for Eye Protection
Next, Simply place the protective Orange Cone of the MarkTech 100i against the surface to be Laser Marked. The Red Beam positioning rectangle will outline the area about to be marked.
Finally, press the Trigger-Button on the Handheld Grip, Laser Engraving starts to be processed.
**The built-in touchscreen is the Laser Controller Software embedded on the MarkTech 100i Portable Fiber Laser Marking Machine. The Operator can search and select through the pre-stored Laser Marking layouts designed and configured for the surface being marked. Once the marking job is selected the operator can preview the selected layout, before it is printed/etched onto the surface.
NO CONSUMABLES FOR LASER MARKING AND ENGRAVING:
There are no consumables required for this portable laser engraver. Unlike Handheld Inkjet Printers, the MarkTech 100i Portable Metal Laser Engraver does not need any inks or solvents to produce the markings.
SPECIFICATIONS:
Laser Power: 100W Fiber Laser
Laser Wavelength: 1064nm
Laser Marking Area: (standard) 100mm x 100mm
Positioning: Red Light indicates Position of Marking
Control System via Linux: 7-inch Touchscreen Controller
Marking Speed: approx. 650 characters/sec
Marking Speed: less-than/equal-to 12000mm/sec
Frequency Tunable: 30-60khz
Coling: Air Cooled
Minimum Line Width: 0.03mm
Minimum Character Height: 0.15mm
Repetition Accuracy: +/-0.01mm
Case Material: Aluminum/Steel
Contact Electrical Power for Operation: 110-240V/50-60Hz, 300Watt
Handheld Laser Engraver Head Dimensions: 9.50" (h) x 3.11" (w) x 6.00"(d)
Laser Controller Cabinet Dimensions: 20.50" (h) x 13.40" (w) x 10.00" (d)
Weight: 39Lbs
Shipping Weight: 49Lbs
