Metal Laser Engraver Printer Video

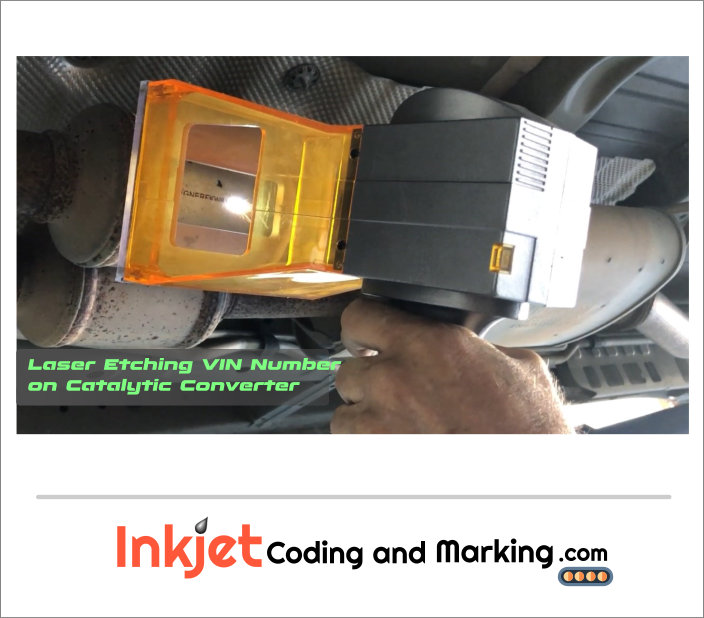

Catalytic Converter Laser Engraving Machine

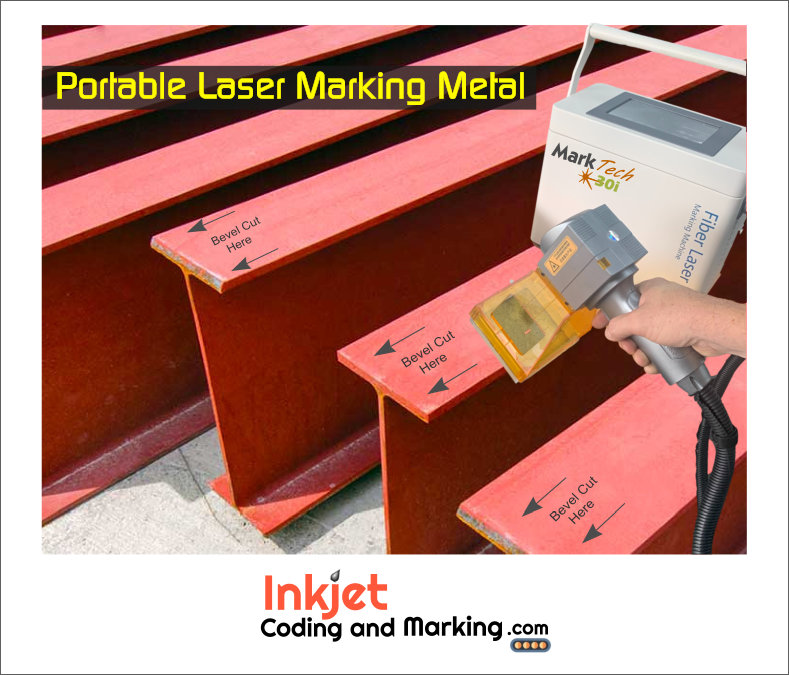

The MarkTech 30i Handheld Laser Engraver processes materials like Metals and some Plastics. Now you can Laser "Print" and Laser "Label" via directly marking onto products and parts. Easily configure for printing Serial Numbers, Date and Time Code Marking, Stencil Text characters. This Laser Marking Machine can also Print Graphics in raster or vector formats and will produce machine-readable 1D Barcodes, QR Codes & the industrial 2D Datamatrix Code. The MarkTech 30i Handheld Metal Laser Engraver is mobile, handy and easy to operate and program to produce Permanent Marking and Coding. Powerful 30W Fiber Laser Engraver equipped in this Handheld Metal Laser Engraver and weighs approximately 26 pounds, for practical portable laser engraving.
Wooden Shipping Crates Handheld Inkjet Printer
Handheld Label Printing on Metal Building Products
Large Format Label Maker QR Code Printer
Handheld Printer Wide Format Printing
LASER ENGRAVING SOFTWARE:
No computer needed, the Laser Engraver Software, powered by Linux, is built-into the MarkTech 30i Handheld Laser Engraver. Using the onboard Touchscreen allows the user to pre-configure customized Laser Marking and Laser Engraving jobs. Industrial Laser Marking could not be easier.
HANDHELD LASER ENGRAVER OPERATION:
Put on your Laser Safety Glasses for Eye Protection
Next, Simply place the protective Orange Cone of the MarkTech 30i against the surface to be Laser Marked. The Red Beam positioning rectangle will outline the area about to be marked.
Finally, press the Trigger-Button on the Handheld Grip, Laser Engraving starts to be processed.
**The built-in touchscreen is the Laser Controller Software embedded on the MarkTech 30i Handheld Metal Laser Engraver. The Operator can search and select through the pre-stored Laser Marking layouts designed and configured for the surface being marked. Once the marking job is selected the operator can preview the selected layout, before it is printed/etched onto the surface.
NO CONSUMABLES FOR LASER MARKING AND ENGRAVING:
There are no consumables required for this portable laser engraver. Unlike Handheld Inkjet Printers, the MarkTech 30i Metal Laser Engraver does not need any inks or solvents to produce the markings.
SPECIFICATIONS:
Laser Power: 30W Fiber Laser
Laser Wavelength: 1064nm
Laser Marking Area: (standard) 100mm x 100mm
Positioning: Red Light indicates Position of Marking
Control System via Linux: 7-inch Touchscreen Controller
Marking Speed: approx. 650 characters/sec
Marking Speed: less-than/equal-to 12000mm/sec
Frequency Tunable: 30-60khz
Coling: Air Cooled
Minimum Line Width: 0.03mm
Minimum Character Height: 0.15mm
Repetition Accuracy: +/-0.01mm
Case Material: Aluminum
Contact Electrical Power for Operation: 110-240V/50-60Hz, 300Watt
Laser Engraver Head Dimensions: 9.50" (h) x 3.11" (w) x 6.00"(d)
Laser Controller Dimensions: 10.60" (h) x 12.60" (w) x 6.20" (d)
Weight: 26Lbs
Shipping Weight: 39Lbs
