DOWNLOADS:

mDUO Side Belt Conveyor Flyer - Bottomless with Side Belts

 VIDEOS:

Bottomless Conveyor mDUO - Dropper Bottle and Tincture Bottles

Hugger Conveyor for large Plastic Container

The mDUO Bottomless Conveyor can be deployed as a Bottom Date Coder for Inkjet Bottle Printing, or simply as a Side Belt Transfer Conveyor with adjustable Side Hugger Belts for any round and bottle packaging.

Bottomless Conveyor

Bottom Coding Conveyor

Bottle Transfer from Conveyor to Conveyor

FEATURES of the mDUO Bottomless Conveyor:

• Quality Construction

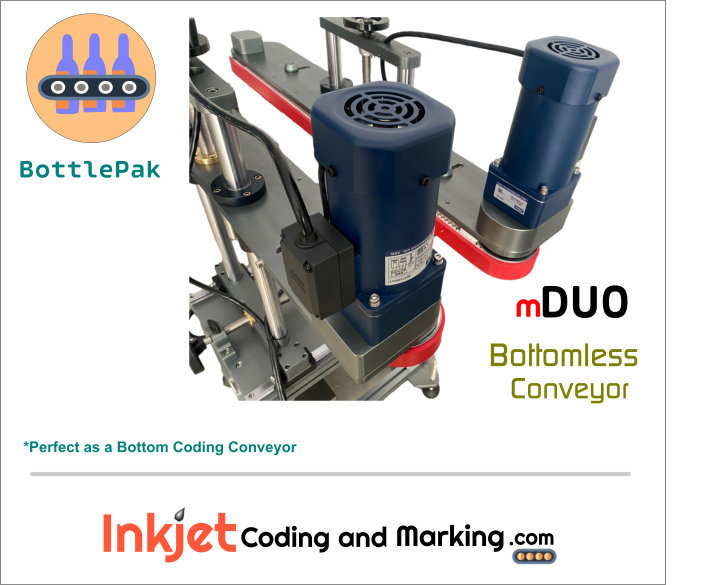

• Dual Motors independently controlled

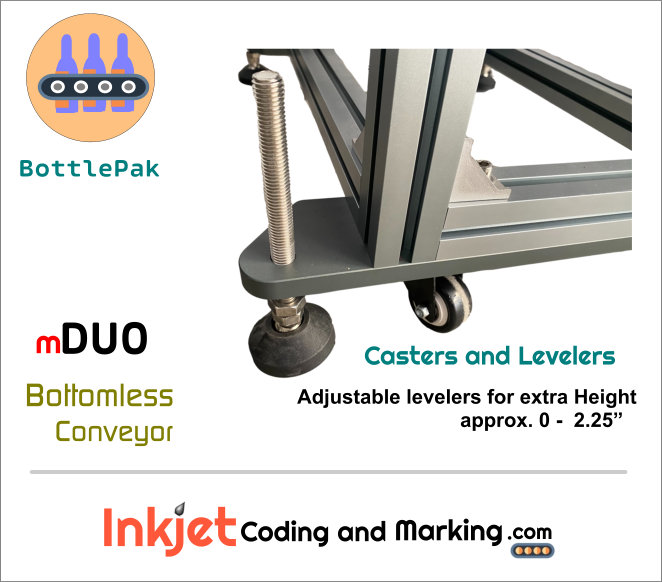

• Adjustable Height: 27.50" (H) up to 42.75" (H), from floor to belt.

• Minimum Bottle Width: 1mm diameter

• Maximum Bottle Width: 7.50" diameter

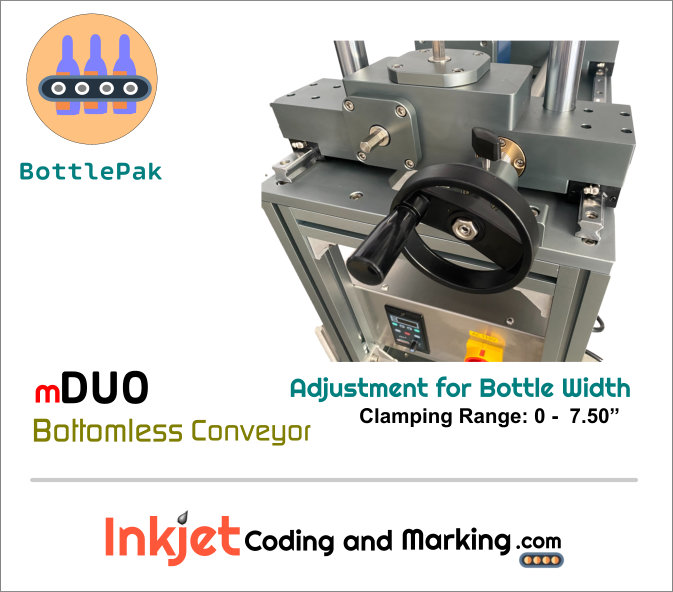

• Easy bottle size adjustment with round hand crank.

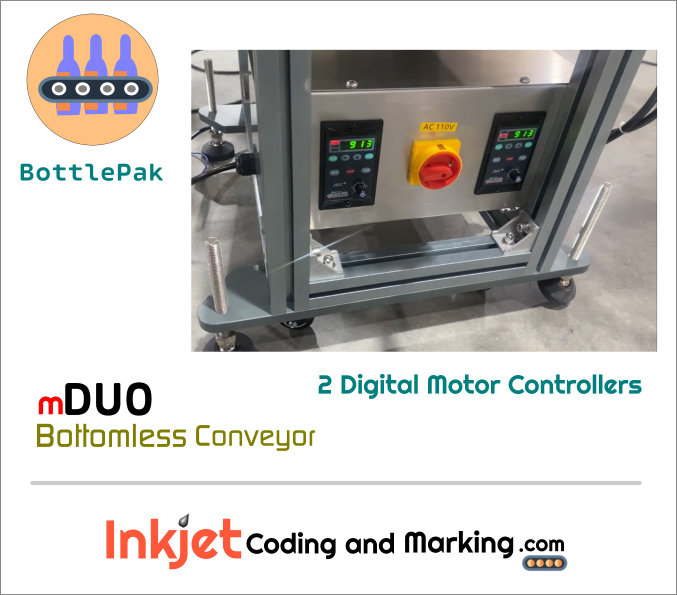

• Twin Digital Speed Controllers.

• 304 Stainless Steel and Aluminum.

• Electrical Requirements: 115V / 1PH / 60Hz

• OPTIONAL Print Head Bracket.

SPECIFICATIONS:

• IQ / QC Certificate

• UL Certified Components

• JSSC  Motor, 1/4 HP, 230V / 1PH /110V/60HZ

• Synchronous speed, 1400 RPM reduced to 120 RPM

• Belt Dimensions: 1.00" (h) x 36" (l) x 3/4" belt thickness

• Machine Dimensions: 37" (l) x 27" (w) x 48" (h)

• Shipping Weight: approx. 220 lbs.   * Ships Truck Freight Only
