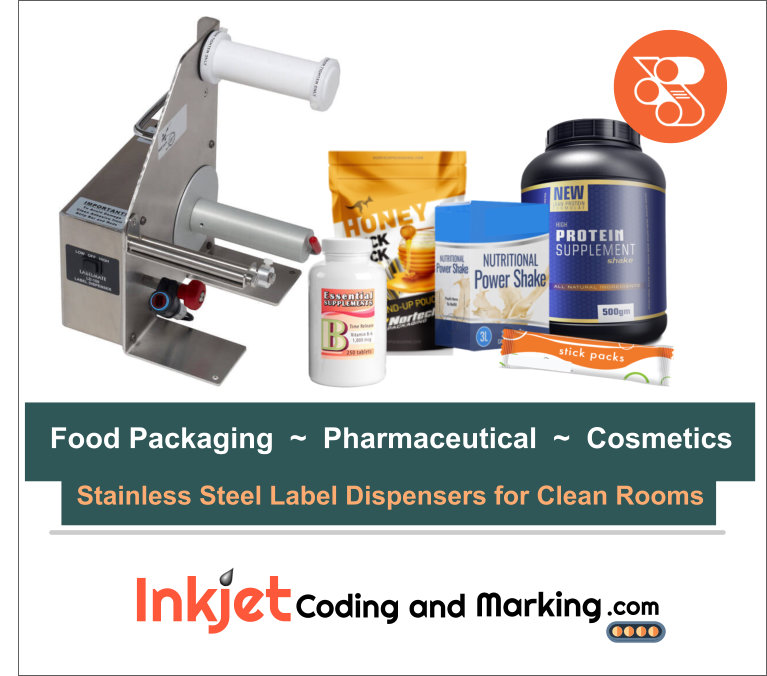

Low Cost and Tabletop Label Dispenser (Stainless Steel) works with any type of Labels on an Opaque Backing. LABELMATE is the "Industry Standard" Label Dispenser Equipment you need. Backed by an unparalleled 3 year parts and labor limited warranty, these dispenser units are built to last.
Label Roll Dispenser
Automatic Label Dispenser Machines
LabelMate Stainless Steel LABEL DISPENSER OPERATION:
The LD-100-RS-SS Label Dispenser Automatically presents the peeled label at the front of the machine. As you pick up a label the next label is immediately advanced. Convenient for both left-handed or right-handed operators.
Optional Upgrades for LabelMate LD-100-RS-SS Stainless Steel Label Dispenser:
- FLANGES-LD - Set of two Aluminum Guide Flanges. Suggessted for use with narrow labels that may hand a tendancy to telescope of fall off the core. *Cannot be used with TSN,LD-6
- LRB-12 - Extension Bracket for use on LD-100-RS models Provides ability to load label rolls up to 12.00" in Diameter. *Cannot be used with LD-200, nor the Stainless Models.
- LDC-1 - Digital Counter (Factory Installed) Counts Labels as they are dispensed. *Cannot be used with LD-100-6
- TSN,LD-6 - Tensoning Shaft Assembly for label supply rol (3" Diameter Cores). Provides Tension Control between label roll and label dispense point.
- LD-ES - External Trigger Start Feature (Factory Installed). Allows an external command signal to be sent to the Label Dispenser to trigger it to dispense the next label.
- BP-LD - Battery Pack and Charger. Makes the Label Dispenser mobile by elminating the need to pulg it into wall power. Battery Life of approx. 10-12 Hours.
- SHAFT-1", LD - Supply Shaft Upgrade to 1.00" Diameter Shaft. Can be implemented on all Label Dispensers. Includes two Guide Flanges.
LABEL AND LABEL ROLLS DIMENSIONS:
- Label Width: 0.50" (12-mm) up to Maximum=4.50" (114-mm).
- Label Type: Opaque
- Roll Diameter: Maximum= 8.50" (216-mm)
- Label-Roll Core Diameter: Greater Than/Equal To 1.50" (38-mm)
- Maximum Speed: 8-ips (203-mm/s)
LabelMate LD-100-RS-SS Label Dispenser Mcahine Features:
- The High-Low Speed Control Switch, allows adjustment for operator preference.
- This is a Stainless Steel (-SS) Label Dispenser and are ideal for Food Packaging, Pharmaceutical and Cosmetic Industry applications.
- Simple Required Adjustment of Optical Sensor for Length of Label to be dispensed.
- Heavy-Duty Industrial Grade Construction.
- 3-Year Parts and Labor Limited Warranty.
SPECIFICATIONS:
- 120V Power Required:
- Dimensions: 10.50"(h) x 10.00"(w) x 8.00"(d) (267 x 254 x 203-mm).
- Machine Weight: 14 lbs. (6.35 Kg).
- Shipping Weight: approx. 16 lbs.
