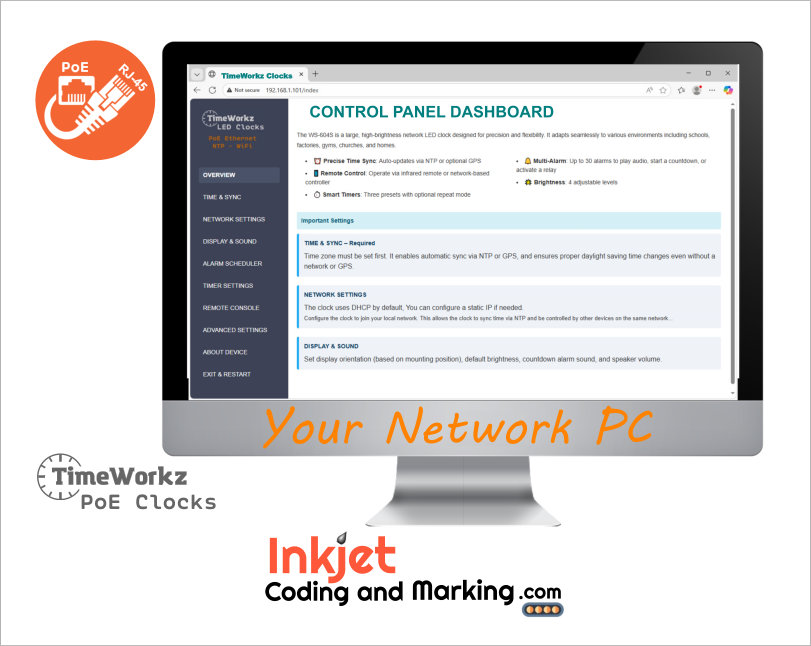

The Web Interface offers a cutting edge technology to remotely access and configure and control the TimeWorkz PoE Clock.
For clients and IT Teams seeking new PoE Clock systems we have the complete timekeeping solution. Carpenter's Time Systems your trusted partner for Time, Since 1962.
Having installed and supported hundreds of wired synchronous with minute impulse correction Analog Clock Systems in Schools controlled by a central Master Clock in the School office, we know firsthand and understand the challenges and cost of maintaining these systems for accurate timekeeping throughout a campus facility.

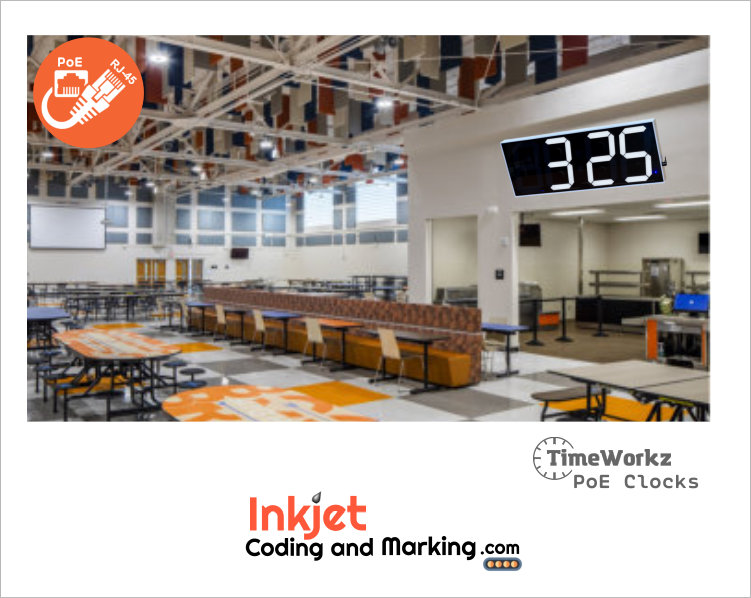

SMART SCHOOL CLOCK PoE TIME DISPLAY
If your shopping for a new School Clock system contact us for a discussion, our TimeWorkz PoE Clock is designed for easy deployment and accurate timekeeping. A Smart School Clock, each PoeClock can be easily managed via the built in Web Interface, this design facilitates access to the Smart School Clock's Control Panel from a desktop web browser and/or a smartphone.
Never needs resetting and keeps time during power failures.
Changes the DST automatically.
School Clock
Factory Clocks
Hospital Clock
Airport Clocks
PoE Clock with WiFi:
The TimeWorkz PoE Clock does support 2.4Ghz WiFi
**WiFi is NOT required for the operation of this PoE Clock. Ethernet connection is the best reliable communication for Time Synchs.
NO Master Clock required for the TimeWorkz PoE Clock:
This PoE Clock does NOT require any master clock or signal transmitters
**The TimeWorkz PoE Clock is affordable and easy to setup for any facility.
IT Technicians - Provisioning via convenient Browser Interface, Configure with IP Address, then connect the PoE Clocks to Ethernet Cables within your facility's network
Users - Users can utilize the Web Interface for controlling Countdown Timers, Stopwatch and Sound Alert functions.
SMART DESIGN for this PoE Clock:
- 3-Ethernet Ports - Top-frame, Bottom-frame and Rear Pigtail Adpater. Manually set the clock's orientation, effectively allowing the Ethernet Cable to be plugged into the Top-Frame or Bottom-Frame.
- LED Brightness: 4 adjustment brightness levels
- IR Remote: Enable/Disable control via the included IR Remote
- Control the PoE Clock via Smartphone or Tablet, either Android or iPhone
TimeWorkz W604IP PoE Clock SPECIFICATIONS:
- High Brightness, Large 6.10" tall White LED Numerals
- 4-Digit LED Display
- PoE compatible for power and data via network
- PoE not required, alternatively connect via Ethernet cable and power via included 12volt Power Supply adapter.
- RTC Timeclock powered backup via Lithium Battery
- Settings for your preferred synchronization with configurable NTP Server
- Supports DHCP and hotsname and also supports Static IP Address
- Timer Mode; setup Countdown Timers for seconds, Minutes or Hour countdowns
- Audible Sounds for Countdown Timer
- WiFi Communications built-in, 2.4Ghz only
- Audible Alerts (up to 30) can be scheduled to Emit Sound, Start Countdown or Activate the onboard Dry/Wet Relay contacts
- Enable or Disable mDNS Multicast for discovery on local network via compatible apps
- Smartphone Control for this PoE Clock
- Dimensions: 18.00"(w) x 6.75"(h) x 1.00"(d)
- Shipping Weight: approx. 5 lbs.
- Wall Mounting: Built-In Teardrop Holes
- What is in the Box: TimeWorkz PoE Clock with White LEDs, Monting screws and anchors, Relay Pigtai and Power Pigtail adapters Power Adapter, IR Remote Control
- Input Power (if via 12volt wall adapter) : auto-detecting single-phase power, 110v/60Hz, 220v/60Hz, 110v/50Hz, 220v/50Hz, output 12vDC/1 Amp
- Input Power (if connected via PoE): The TimeWorkz PoE Clock is equipped with IEEE 802.3at, known as PoE+
- 1 DRY-Contact Output Relay on-board; rated 30vDC/2amp or 125vAC/0.50amp
- 1 WET-Contact Output Relay on-board; rated 12vdc. Max current 300mA, 3.6 watt output
APPLICATIONS for Smart PoE Clock :
Countdown Timer with Audible Alert for Classroom
Stopwatch LED Display for Track and Field or Gymnasium
School Clocks
