Globaltek 37S Bottomless Conveyor - Side Grip Transfer - Hugger Belt Conveyor Systems
Choose Globaltek Bottomless Conveyor Systems for Packaging, quality construction and affordable pricing for Bottom Coding with CIJ Printers.
Deploy the 37S Bottomless Hugger Belt Conveyor for various duties on your Packaging Line. This Automated Conveyor System from Globaltek is an excellent choice as a Side Belt Gap Transfer Conveyor or when your requirement is a Bottle Gripper Conveyor for CIJ Printing.
Inkjet Coding and Marking now offers specialty Types of Conveyors, known as a Bottle Conveyor, Hugger Belt Bottomless Conveyor.

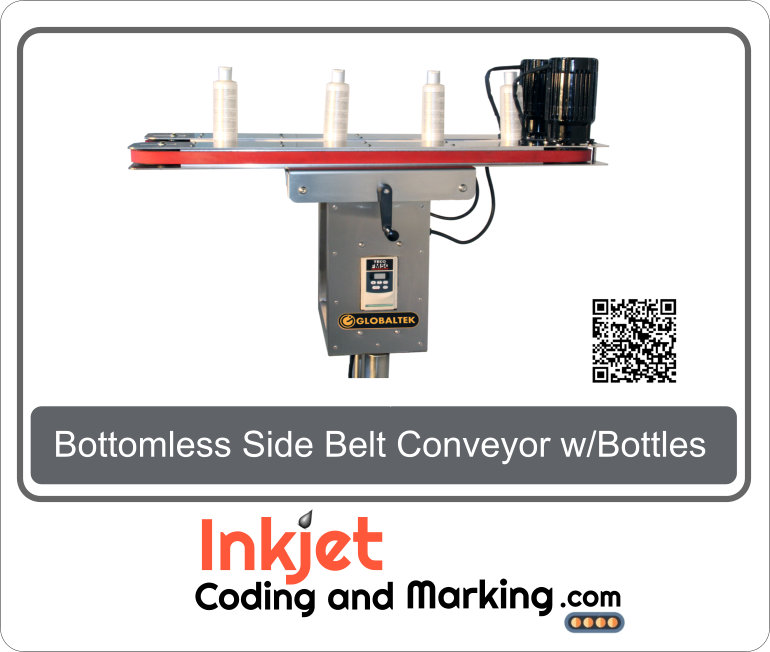

The Globaltek 37S Bottomless Hugger Belt Conveyor can be deployed as a Bottom Coder for CIJ Printers, or simply as a Gap Transfer Conveyor with adjustable Side Belt Grippers for any packaging line.
FEATURES:
Made in U.S.A.
Adjustable Height: 37.00" (H) up to 43.00" (H), from floor to belt.
Minimum Bottle Width: 1mm diameter
Maximum Bottle Width: 7.00" diameter

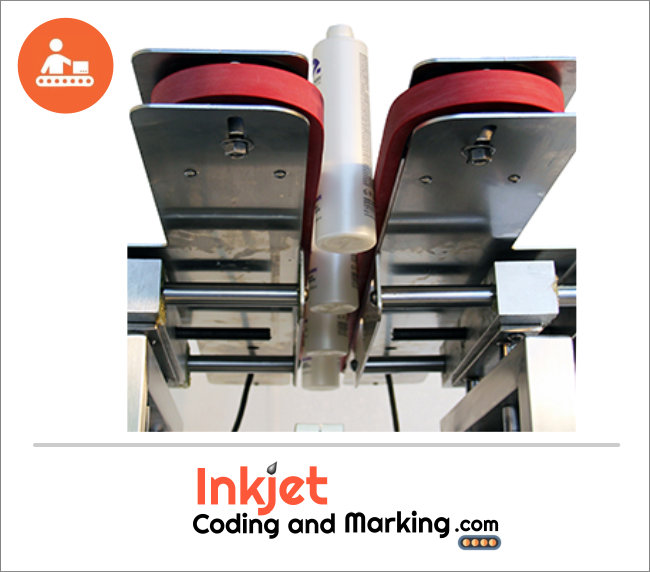

Easy bottle size adjustment with hand crank.
Teco UFD Speed Controller, up to 300 Feet / Minute.
304 Stainless Steel and Duro Aluminum.
Electrical Requirements: 115V / 1PH / 60Hz
OPTIONAL Print Head Bracket.
SPECIFICATIONS:
IQ / QC Certificate
UL Certified Components

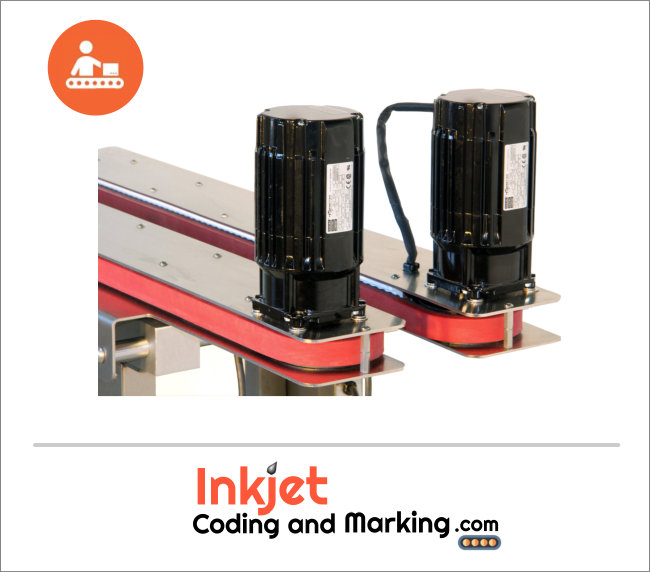

Bodine Motor, 1/8 HP, 230V / 3PH /60HZ
Synchronous speed, 1800 RPM reduced to 120 RPM
Belt Dimensions: 1.00" (h) x 36" (l) x 3/4" belt thickness
Machine Dimensions: 37" (l) x 27" (w) x 48" (h)
Shipping Weight: approx. 220 lbs. * Ships Truck Freight Only
