The Workholding Fixture that adapts to the shape of any workpiece. With ContourFLEX Jigs and Fixtures you will save time and cost with rapid deployment of tooling,  inspection tasks and assembly in your manufacturing processes.

DOWNLOADS:

VIDEOS:

Workholding Fixture Video of ContourFLEX

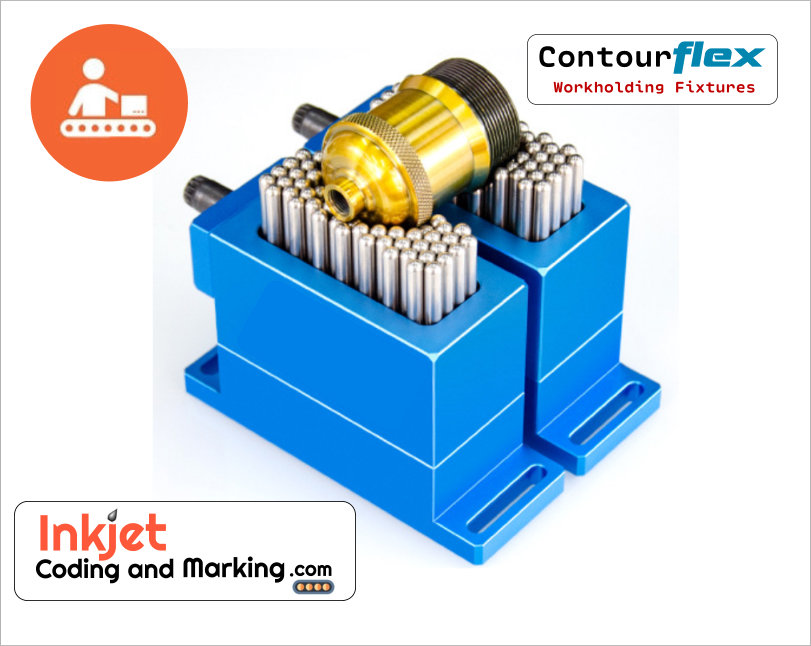

If you require Rapid Fit Workholding, then the ContourFLEX is a Fixture designed to automatically adapt to different shapes and sizes of parts.

The Jigs and Fixures in this category allows for quick adjustments and reconfiguration to accomodate workpiece geometries, eliminating the need for costly custom designed Fixtures for Workholding...enjoy the versatility.

WORKHOLDING VERSATILITY BUILT-IN:

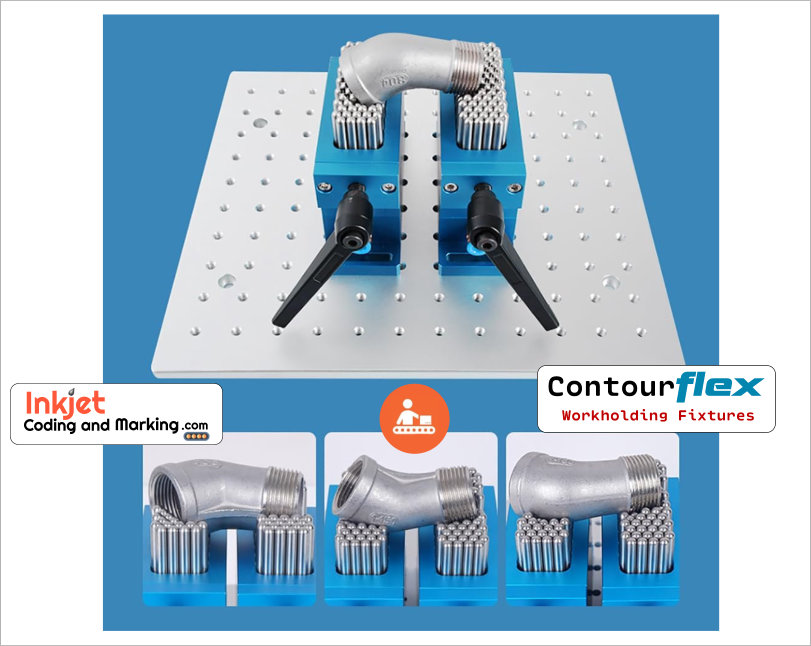

These fixtures can be used in various manufacturing processes, including machining, assembly, and measurement.

Reduced Fixture Costs

Faster Changeovers between different parts

Improve Positioning Accuracy

Time and Date Stamp Machine with second

OPERATION OF THE WORKHOLDING FIXTURE:

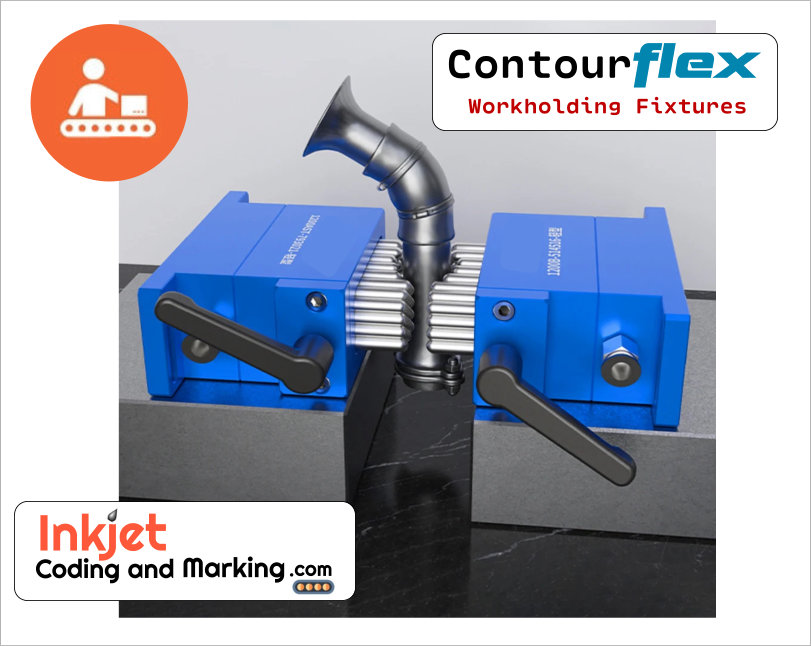

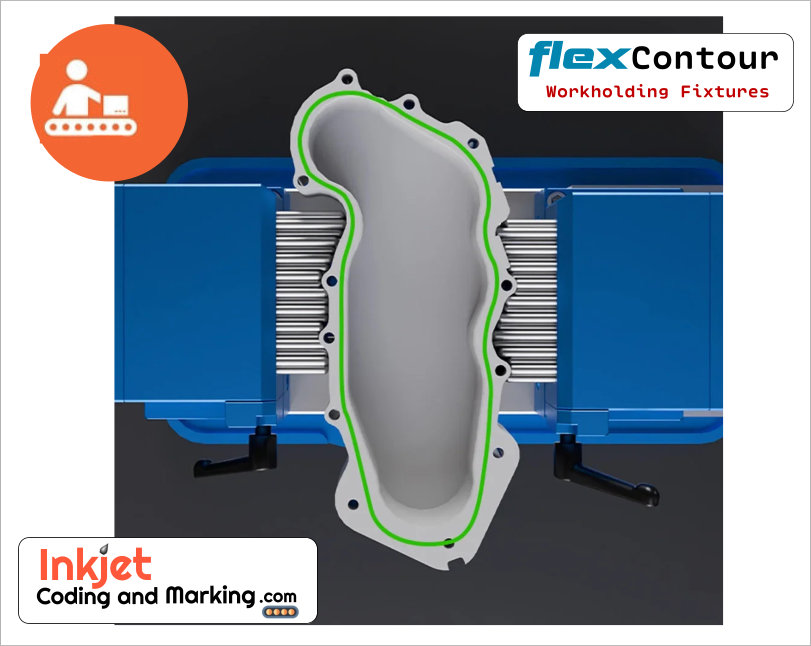

Simply Press Down the part into the metal pins and tighten the locking arm. The pins will perfectly maintain the shape of the part, adapting to the contour that was pressed-in.

**After removing the workpiece and loosening the locking-arm, the pins return to thier extended home position.

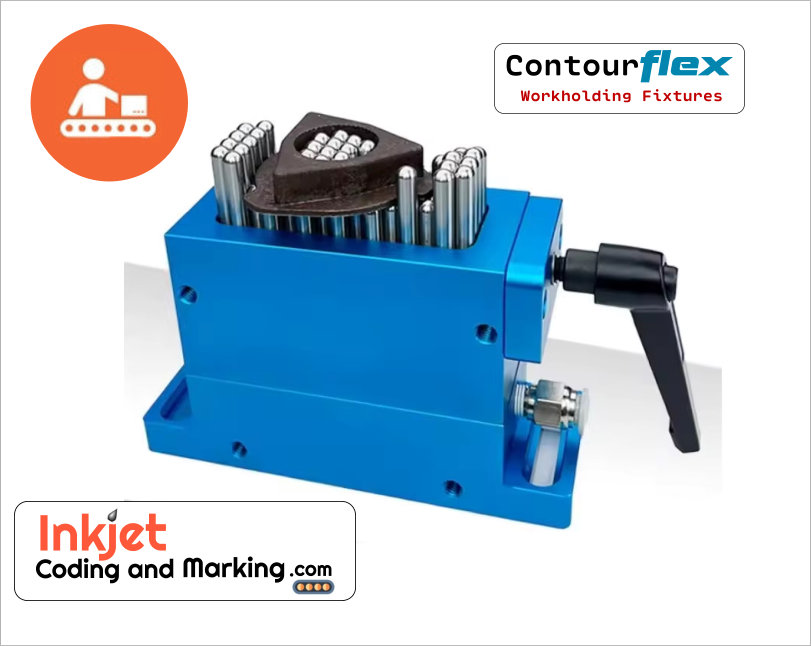

For operations that require repeatable positioning, parts can now be removed and replaced into the exact postion.

ContourFLEX 30x79-70Kg  Workholding Fixture SPECIFICATIONS:

• Manually Locked via Crank Arm
• Material: Aluminum and 304 Stainess
• Area of Matrix: 30 x 79mm  (1.18" x 3.11")
• Load: 70Kg  / 154.32 Lbs.
• Pin Stroke Depth: 21mm / 0.83"
• Pin Diameter: 6mm / 0.23"
• Dimensions: 4.92"(l) x 1.97"(w) x 4.17"(h)  (height w/o pins 85mm / 3.35")
• Shipping Weight: approx. 6 lbs.

APPLICATIONS for Workholding Fixtures:

Adaptive Workholding

Assembly Manufacturing

Small Batch Parts Production
