Rust Removing Laser Video

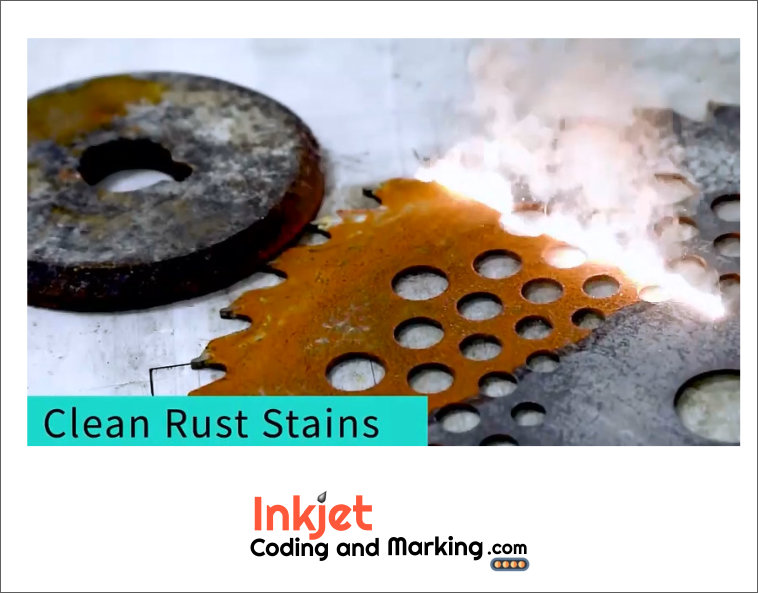

The LaserCleaner 100W Rust Removing Laser is an incredibly versatile Handheld Laser Cleaning Machine for a wide range of Industrial Laser Cleaning tasks, primarily utilized for Rust Removal on Metals. However, the CleanLaser 100W can be an effective tool for Laser Paint Removal, Metal Degreaser for industrial surfaces, or cleaning of product moulds and also an excellent Weld Cleaning Tool.

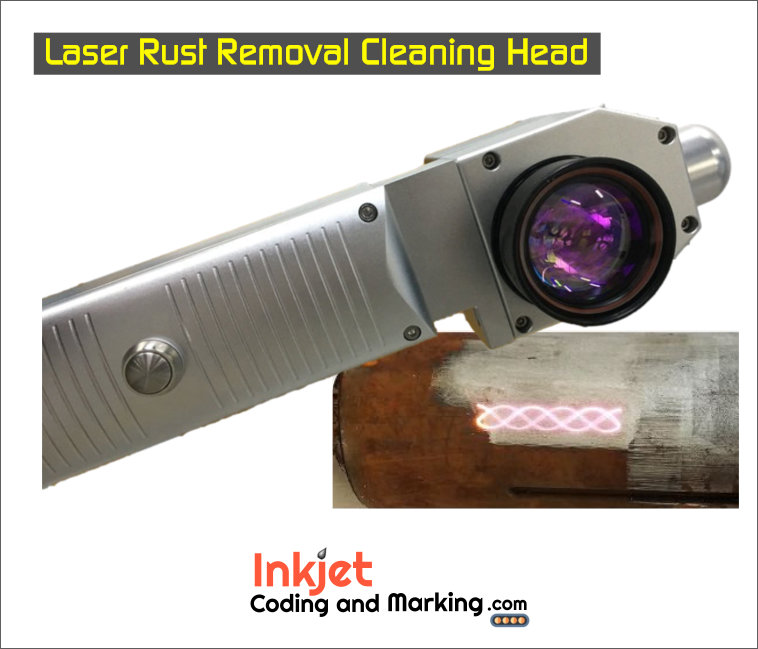

Portable Laser Cleaning Machine with Handheld Laser Rust Removal Gun
APPLICATIONS FOR 100W RUST CLEANING LASER

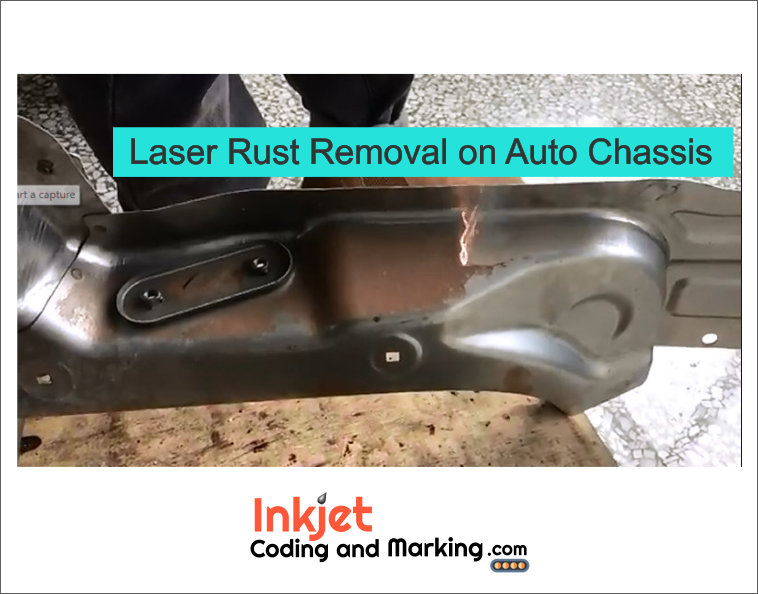

Laser Rust Removal on Automotive Truck and Car Chassis

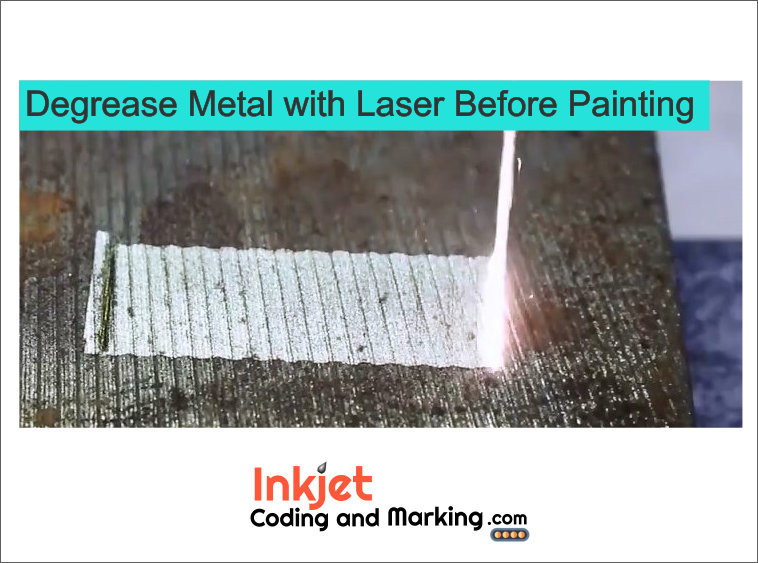

Degrease Metals Before Painting

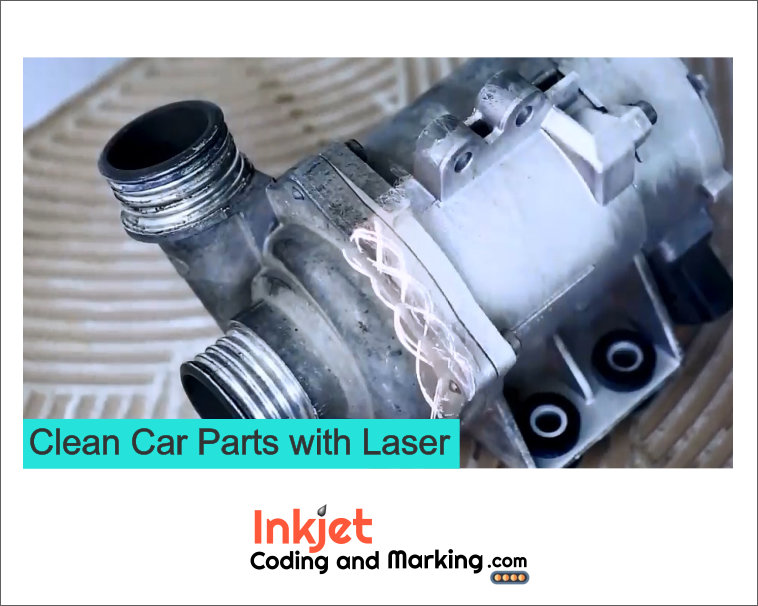

Laser Cleaning Machine for Car Auto Parts
RUST CLEANING LASER SOFTWARE:
No computer needed, the Rust Cleaning Laser Software, is built-into the CleanLaser 100 Machine. The onboard Touchscreen allows the user to pre-configure and adjust Laser Cleaning power and intensity of the spiral-waves that removes the rust layer. Industrial Laser Cleaning could not be easier.

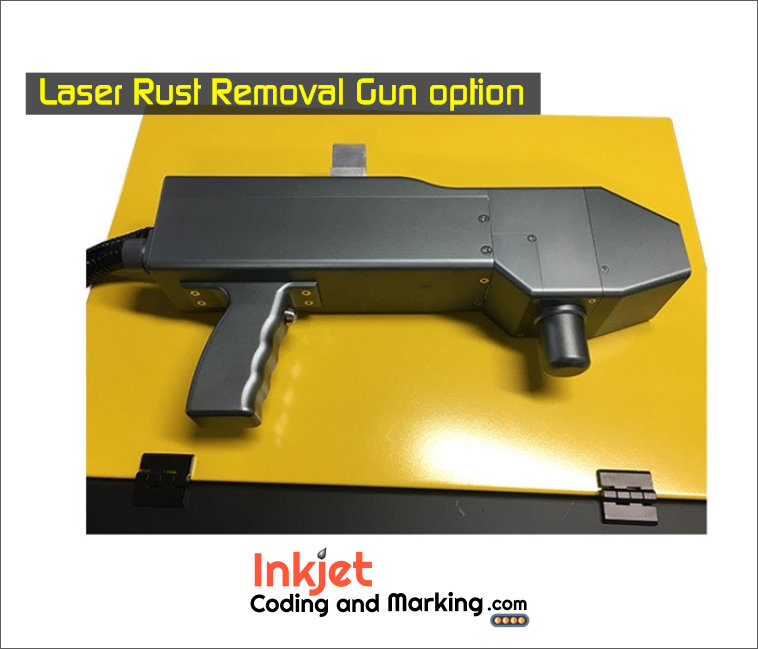

OPERATION OF THE HANDHELD LASER RUST REMOVAL GUN:
Put on your Laser Safety Glasses for Eye Protection.
Next, hold in your hands the Rust Removing Laser Gun and simply point the Laser Beam onto the metal surface to be cleaned.
Finally, press the Trigger-Button on the Handheld Laser Gun Grip, the Laser Cleaning starts to be processed as the rust layer undergoes Laser Sublimation, which vaporizes only the top layer of rust, therby leaving the metal underneath unharmed.
The Operator continues to move the Laser Cleaning Beam across the entire surface area of the metal being cleaned.
NO CONSUMABLES, VERY LITTLE WASTE FROM RUST REMOVING LASERS:
Environmentally Friendly, the Rust Removing Laser does not require consumables such as sand blasting sand or chemicals. Industrial Laser Cleaning does not produce any greenhouse emissions and does not leave behind any waste because the contaminted surface layer is vaporized. Also, while Safety Glasses are always recommended. Full PPE garments, such as ventilated abrasive blasting respirator Helments and Face Shields are not neccessary when performing Laser Cleaning.
SPECIFICATIONS:
Laser Power: 100W MOPA Fiber Laser
Laser Wavelength: 1064nm
Positioning: Light indicates Position of Marking
Control System via Linux: 7-inch Touchscreen Controller
Cleaning Scan Length: 1-100mm (customizable)
Cleaning Scan Width: 1-20mm (customizable)
Pulse Energy: 1-1.5mJ
Cooling: Air Cooled
Cable Length: 9.84' feet
Contact Electrical Power for Operation: 110-240V/50-60Hz, 1000Watt
Laser Cleaner Head Weight: 5.75 Lbs.
Laser Cleaner Head Dimensions:
Controller Cabinet Dimensions: 31.50" (h) x 17.00" (w) x 26.50" (d)
Machine Weight: 175Lbs
Shipping approx. Weight: 275Lbs
Shipping Crate approx. Dimensions: 43.00" (h) x 22.00" (w) x 34.00" (d)
