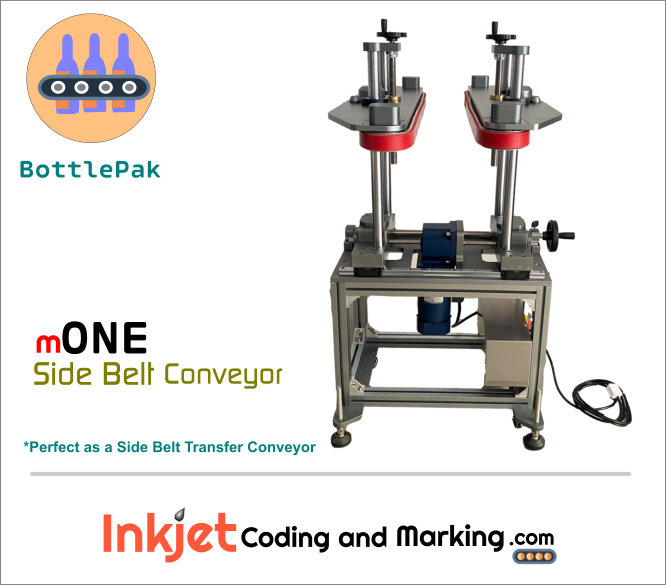

Name: BottlePack mONE Side Belt Conveyor
Brand: Bottle Pack Conveyors
SKU: BottlePack-mONE-Side-Belt-Conveyor

Choose the BottlePack mONE Side Belt Conveyor for quality construction and affordable pricing in a Side Belt Transfer Conveyor.

Deploy the mONE Side Belt Conveyor for various duties on your Packaging Line. This Automated Side Grip Conveyor Belt is an excellent choice when you need to setup a Transfer Conveyor Transfer System in your plant or when your requirement is a Bottle Gripper Conveyor for CIJ Printing and Date Coding on Bottom of containers.

Inkjet Coding and Marking now offers specialty Types of Side Grip Conveyors, known as a BottlePack Side Belt Conveyor or Bottomless Conveyor.

DOWNLOADS:

mONE Bottom Coding Conveyor Flyer

VIDEOS:

BottlePack mONE Side Belt Bottomless Conveyor

The mONE Side Belt Conveyor can be deployed as a Bottom Coder for CIJ Inkjet Printers, or simply as a Gap Transfer Conveyor with adjustable Side Belt Grippers for any packaging line.

FEATURES of the mONE Side Belt Conveyor:

Quality Construction

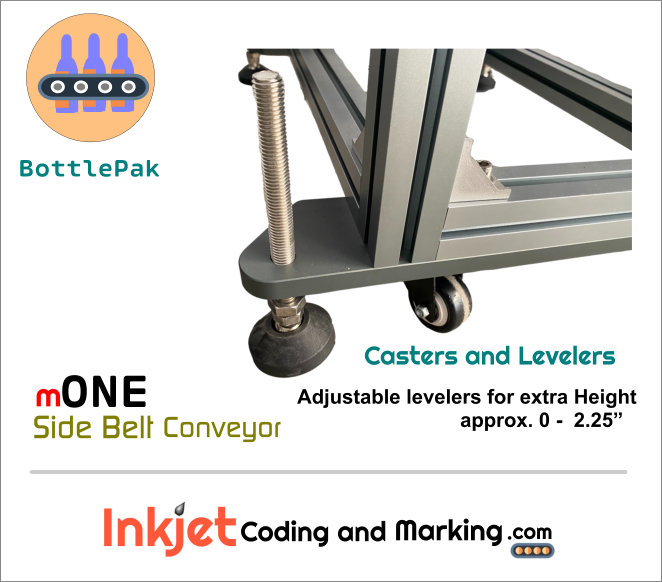

Adjustable Height: 27.50" (H) up to 42.75" (H), from floor to belt.
Minimum Bottle Width: 1mm diameter
Maximum Bottle Width: 7.75" diameter

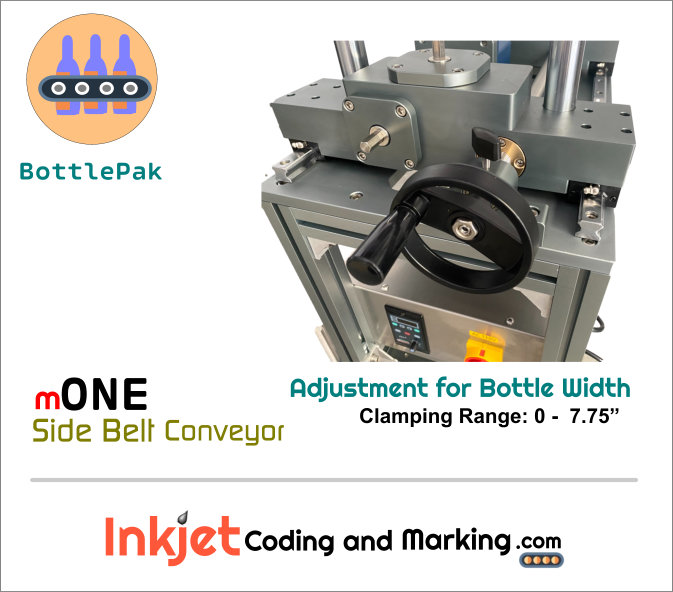

Easy bottle size adjustment with round hand crank.

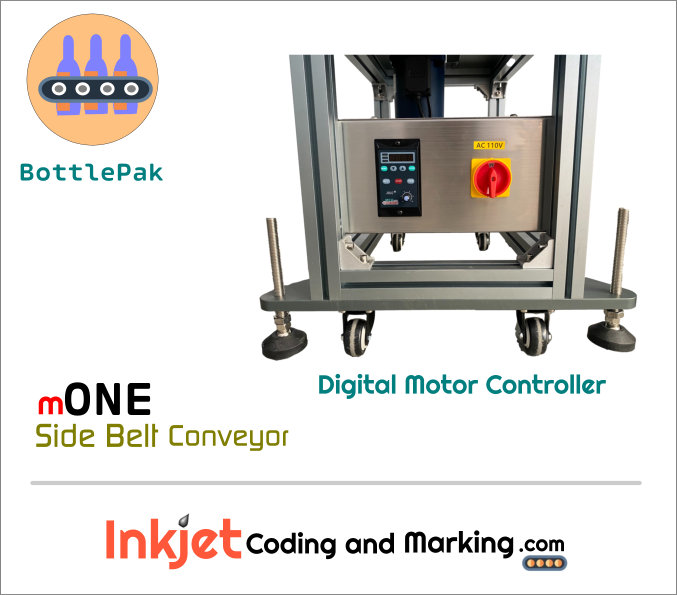

Digital Speed Controller.
304 Stainless Steel and Aluminum.
Electrical Requirements: 115V / 1PH / 60Hz
OPTIONAL Print Head Bracket.

SPECIFICATIONS:

IQ / QC Certificate
UL Certified Components
JSSC Motor, 1/4 HP, 230V / 1PH /110V/60HZ
Synchronous speed, 1400 RPM reduced to 120 RPM
Belt Dimensions: 1.00" (h) x 36" (l) x 3/4" belt thickness
Machine Dimensions: 37" (l) x 27" (w) x 48" (h)
Shipping Weight: approx. 220 lbs. * Ships Truck Freight Only

BottlePack mONE Side Belt Conveyor

$2,850.00
