ContourFlex Jigs and Fixtures use flexible pins that adapt to any shape for a custom workholding fixture via standard form-fitting vise clamp of workpieces.
Workholding covers any device or apparatus used to secure a workpiece during manufacturing or assembly or measuring operations. We have the solution for Jigs and Fixures that can prevent movement or slippage of the part. Find Custom Workholding Fixtures here at InkjetCodingandMarking.com
JIG AND FIXTURES DEFINITION
Our Jigs and Fixtures are specialzed to achieve accuracy and repeatability in manufacturing processes. Find inspiration with the ContourFLEX designed to Hold, Support and Locate the workpiece, often resulting in an off the shelf fixture that will save time and cost, as compared to needing to design and construct a Jig and Fixtures for your application.
CMM WORKHOLDING with ContourFLEX
CMM Workholding refers to the fixtures and techniques utilized to securely hold a workpiece in place while it is being measured by Coordinate Measuring Machine (CMM).
Investigate the ContourFLEX Fixture, designed for quick setup and conforms to the shape of the workpiece this adaptive Flexible fixture will speed up the inspection process.
CNC WORKHOLDING with ContourFLEX Jigs and Fixtures
ContourFLEX Fixtures can assist accuracy, stability, and preventing part movement during cutting or drilling. Effective CNc Workholding is essential for achieving desired tolerances, reducing scrap, and preventing tool breakage or machine damage.
Depending on the workpiece geometry and machining process, custom workholding fixtures may not be necessary with the use of ContourFLEX CNC Workholding Fixtures.
JIGS AND FIXTURES WORKHOLDING SIMPLIFIED

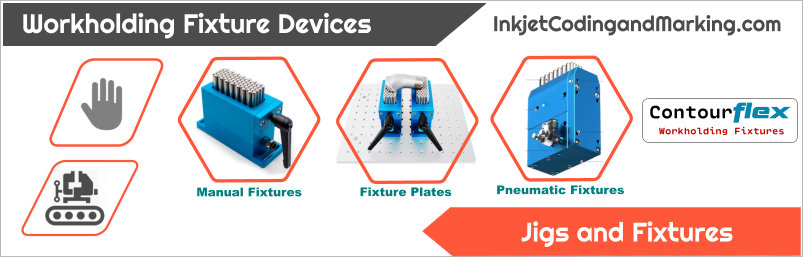

Flexible Positioning with the smart design of our ContourFlex Jogs and Fixtures are ideal for Manual Fixturing or utilize our Pneumatic Fixtures for automation and semi-automation workflows.
Take a closer look, imagine multiple parts in your production line and now these standard Workholding Jigs and Fixtures can be utilized to hold or clamp each part regardless of the shape or contour of the workpiece.
FIXTURE PLATES AND VISE CLAMP ACCESSORIES

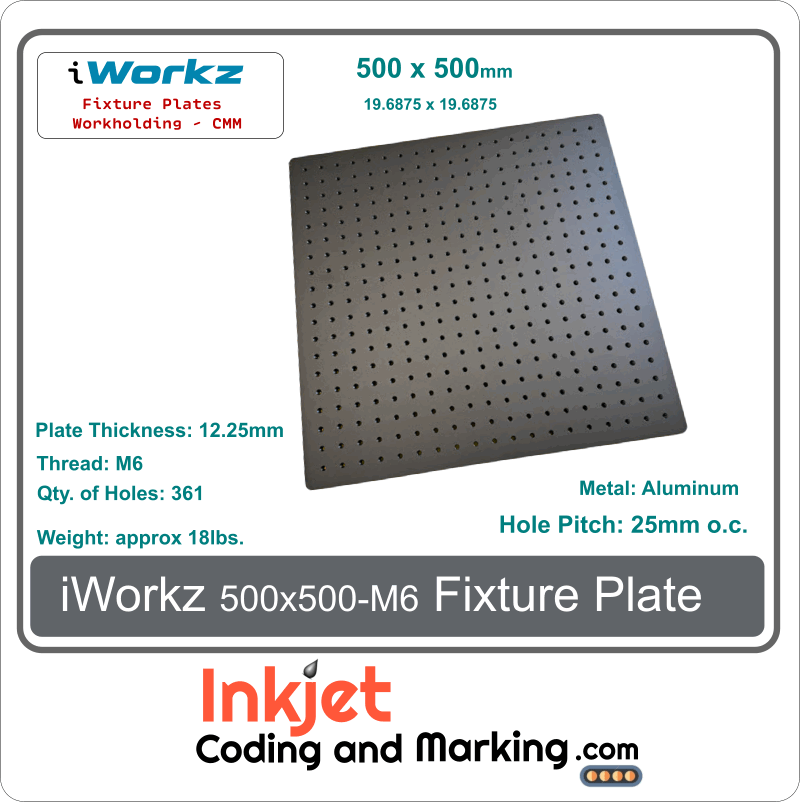

Easily deploy these Jigs and Fixtures onto Fixture Plates, Vise Clamps to accomodate your application and workflows.

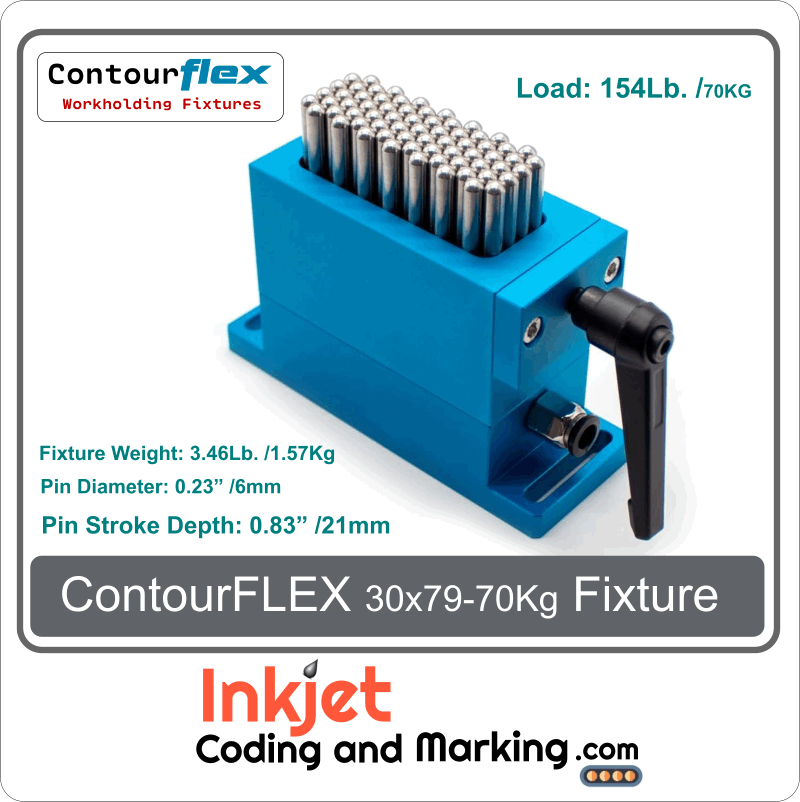

The standard mnaually operated fixtures are designed with load capacities of 70Kg/154.30Lbs, or 280Kg/617.30Lbs. all sharing Pin Diameters of 6mm/0.24", with Pin Stroke Distance of 21mm/0.83"
WORKHOLDING APPLICATION IDEAS for ContourFlex Fixtures:
Assembly Manufacturing Custom Workholding Fixtures
Vise Clamp Air Vise Workholding
Adaptive Workholding Repeatable Positioning
