Sojet V1H Coding Printers - Handheld

The Sojet V1H HandMark are High Resolution industrial Coding Printers. This is a Handheld Inkjet Printer capable printing crisp Text characters and Date and Time Stamps . Also the Sojet HandMark can print Graphics, Company Logos and legible 1D Barcode and 2D Barcodes, that are accurately read by a scanner. The new capacitive built-in Touchsreen makes for the most responsive and intuitive operation found in a Coding Printer that is Handheld.

  • Brand:
  • Sojet Ink Jet Printers
  • ITEM:
  • HandMark-V1H

$2,199.00

Choose Your Options:

Quantity:

DOWNLOADS:

HandMark V1H Brochure

VIDEOS:

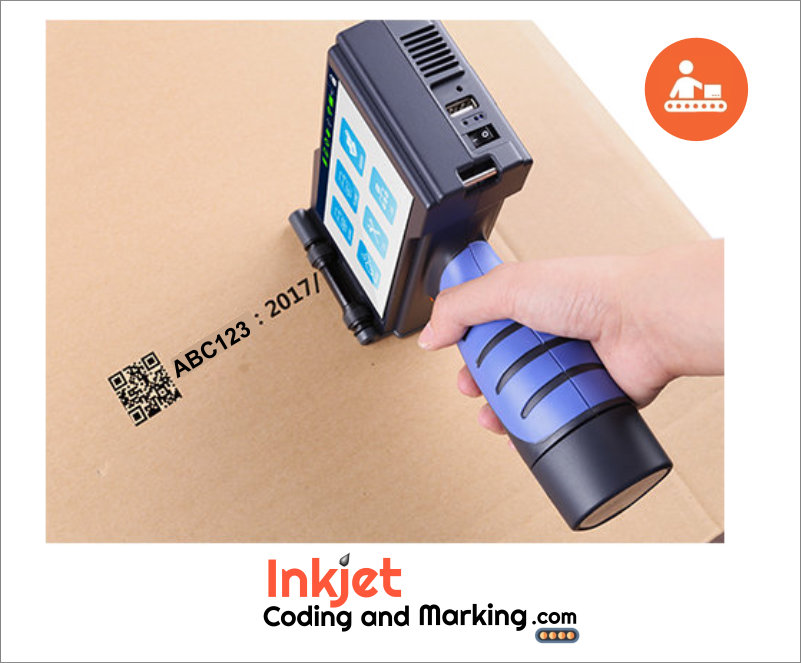

The Sojet V1H HandMark is a hand held ink-jet printer that directly marks products, curragated boxes, bags or documents, simply and quickly. Easily configure this Coding Printer, the HandMark V1H, for printing Lot numbers, Expiry date, time and any Text characters, this device can also print graphics and barcodes. Solvent inks, perform very well when printing on non-absorbent surfaces such as metal and plastic, or glass. The Sojet HandMark is mobile, handy and easy to operate and program. It comes complete with its own software built into the printer and weighs approximately 1 pound.



SOFTWARE:

No computer needed, the Software is built-into the printer, using the onboard Touchscreen allows the user to pre-configure up to (400) customized imprints.



**After Imprints are downloaded, Printing is Fully Mobile.



Optional Upgrades:

  1. Choose the optional PC Software to more easily create and import complex Print Messages.

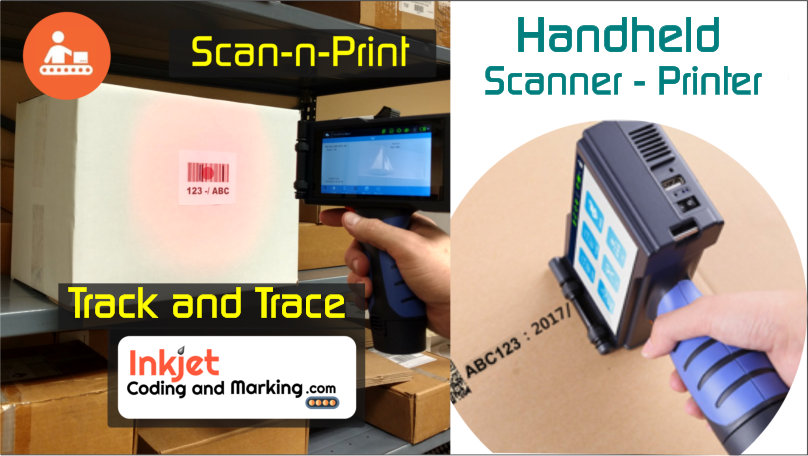

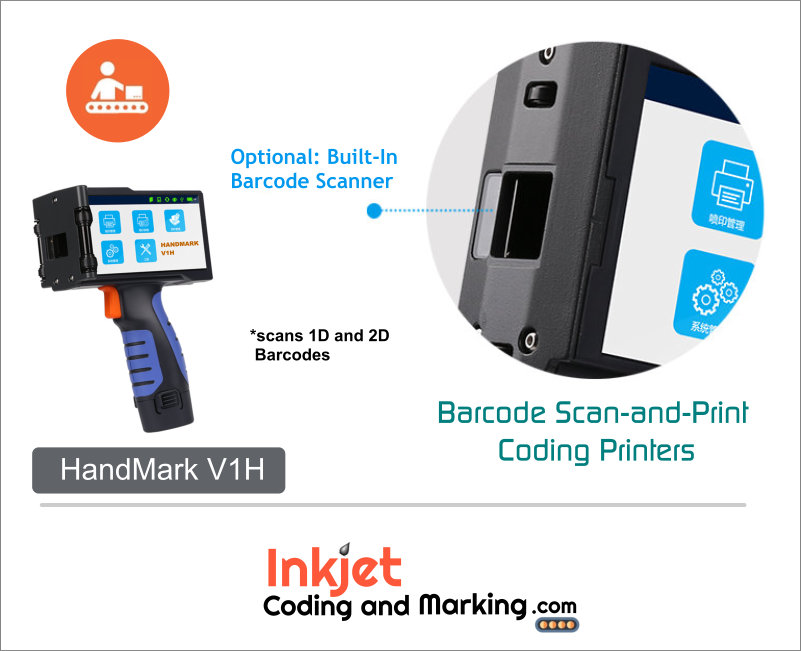

  2. Choose the optional model Sojet V1H-S with Built-In Barcode Scanner, for one of a kind, Scan-n-Print functionality. Watch this video to see how the optional Sojet V1H Handheld Barcode Scanner can improve coding and marking processes....contact us via phone for a quote on the barcode-scanner upgrade.





PRINT OPERATION:

Simply place the rollers of this Sojet HandMark Coding Printer onto surface to be printed and press the print button. Next, start moving the printer upon the surface, inkjet printing occurs automatically. This printer adapts to the spped of the user, moving fast or slow, creates the same imprint.



**The on-board capacitive touchscreen on the V1H HandMark allows user to search and select through the up to (400) pre-stored imprints, allowing the user to effortlessly select  and preview the selected imprint, before it is printed.




INKJET CARTRIDGES:

  • Ink Colors Available: Black, White, Red, Blue
  • Ink Colors / Cartridges are Interchangeable
  • The Solvent based inks from Sojet are able to print on Non-Porous surfaces including, metal, plastic and glass
  • Print on any absorbent surface, with the use of the standard ink cartridge.



SPECIFICATIONS:

  • Maximum Print Height: .50 inch
  • Maximum Print Length: up to 9.00' feet
  • Character Sizes: less than 1/8 inches and larger font sizes of approx. 1/2 inches.
  • One and two, three or four line imprints are possible
  • Rechargeable Battery provides up to 6 Hours of operation
  • Dimensions: 3.10"(w) x 8.60"(h) x 6.00"(d)
  • Shipping Weight: approx. 5 lbs.





PRINT OPERATION:

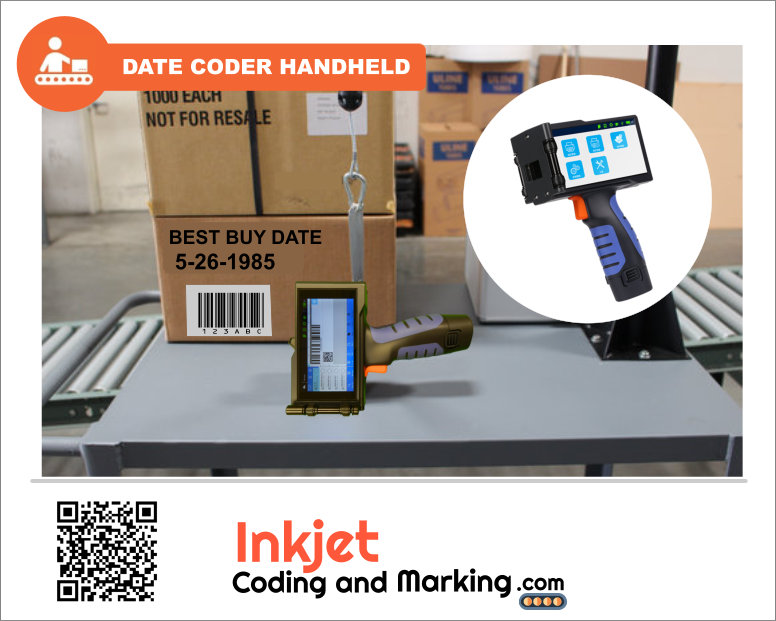

Date Coding Handheld

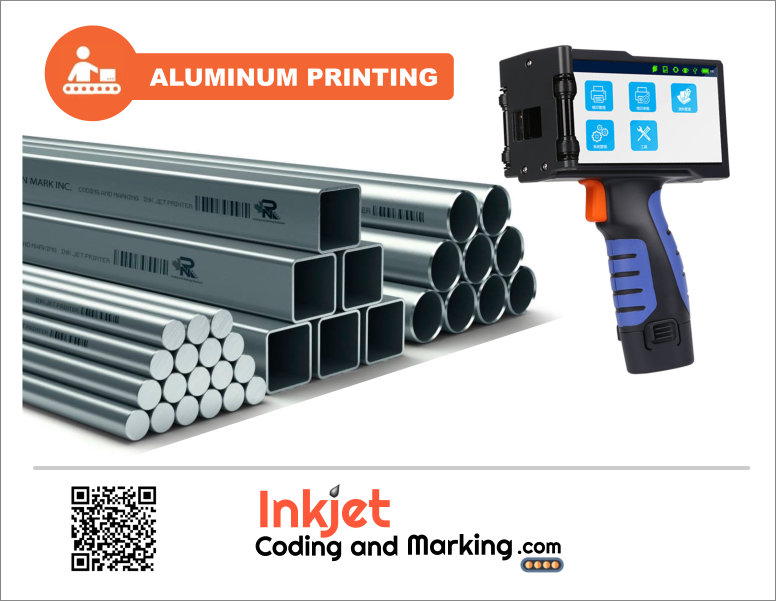

Aluminum Printing and Marking
